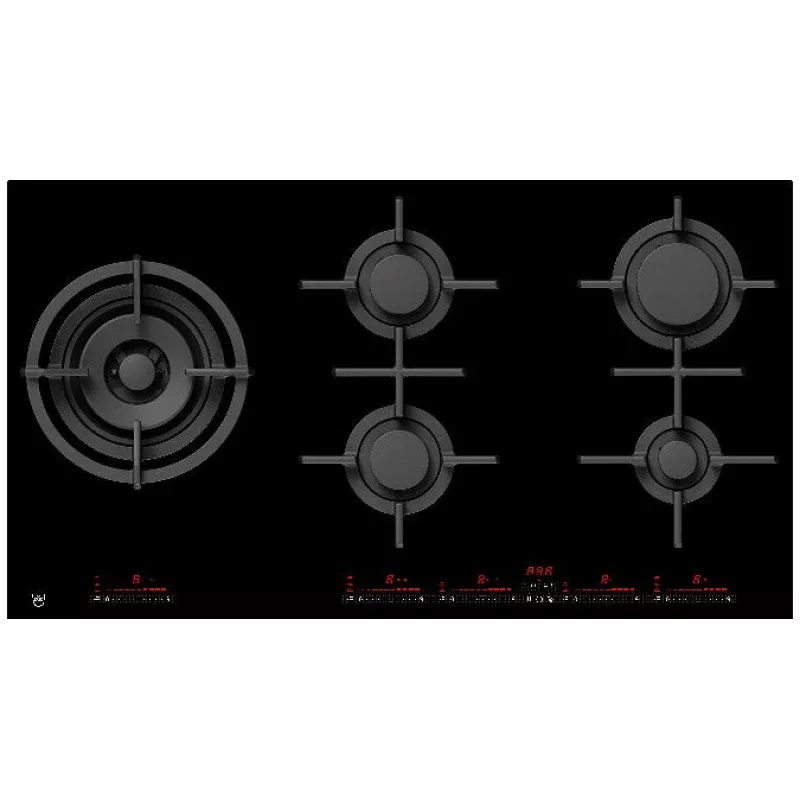

Name: V-ZUG GAS951GSAZ
Brand: roomstyledepot.com
SKU: WW7567141772
Price: 58.40 USD
Availability: InStock

Article no.	3107260515

Display	Digital display
Controls	Multi-Slider/direct selection
Slider control	Yes
Operating time	Yes
Languages in display	–
Button sound (on/off)	Yes

Hob category	gas
Operating time with shut-down function	Yes
Residual heat indicator	Yes
Timer	Yes
Restore function	Yes
Cooking zones	5
Power levels	9
EcoStandby	Yes
Gas-Technology	natural gas H 20 mbar

Warranty	2 years

3D data (.3ds /.dwg / .dxf / .obj / .skp / .stp)

Operating instructions

Installation guide

Brochure

Product image (high resolution)

Product data sheet

Appliance height	171 mm
Appliance width	897 mm
Appliance depth	501 mm
Appliance corner radius	1.5 mm
Support size width	886 mm
Max. support size width	886 mm
Support size depth	490 mm
Max. support size depth	490 mm
Installation height when flush-fitted	98 mm
Installation height when surface-mounted	94 mm
Cut-out width when flush-mounted	903 mm
Cut-out width when surface-mounted	886 mm
Max. cut-out width when surface-mounted	886 mm
Cut-out depth when flush-mounted	507 mm
Cut-out depth when surface-mounted	490 mm
Max. cut-out depth when surface-mounted	490 mm
Empty weight	21.8 kg
Cooking zone 1 position	central, left-aligned
Cooking zone 2 position	front, centre
Cooking zone 3 position	rear, centre
Cooking zone 4 position	rear right
Cooking zone 5 position	front right

Cooking zone 1 max. power	6000 W
Cooking zone 2 max. power	1750 W
Cooking zone 3 max. power	1750 W
Cooking zone 4 max. power	3000 W
Cooking zone 5 max. power	1000 W
Type of connection (1)	220-240 V~
Frequency (1)	50-60 Hz
Connected loads (1)	0.02 kW
Fuse protection (1)	3 A
Energy efficiency of entire hob	58 %
Gas burner 1 energy efficiency	56.6 %
Gas burner 2 energy efficiency	60 %
Gas burner 3 energy efficiency	60 %
Gas burner 4 energy efficiency	57.6 %
Gas burner 5 energy efficiency	55 %
Plug type	Cable
Connection cable	1.7 m
