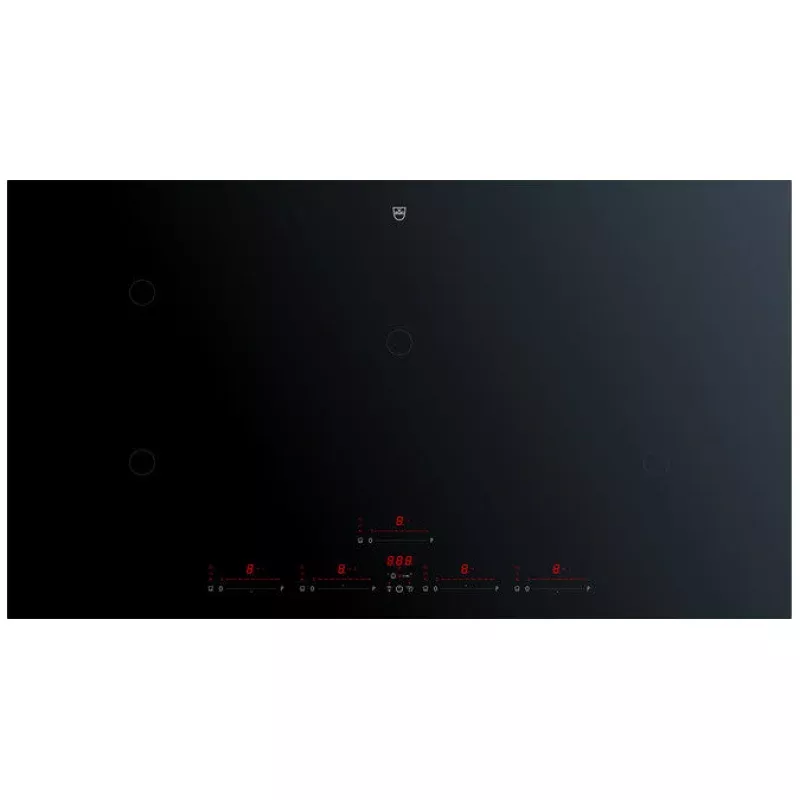

V-ZUG CookTop V6000 I905

• Configuration
• Functions
• Documents
• Technical data
• Accessories

Selected product

Selected product

Article no.	3111400009

EAN code	7630029439791
Predecessors article number	3108165515
Type	CTI6T95MMSOLD
Product category	Hob
OptiGlass	Yes
Standard width	90 cm
Front design	BlackDesign
Frame	DualDesign

Display and operation

Display and operation

Display	Digital display
Controls	Multi-Slider/direct selection
Slider control	Yes
Operating time	Yes
Button sound (on/off)	Yes

Hob features

Hob features

vzgpi_Induktionsspulentyp	Rund/MaxiFlex
OptiGlass	Yes
Hob category	Induction
Operating time with shut-down function	Yes
Residual heat indicator	Yes
Timer	Yes
Restore function	Yes
Cooking zones	5
Power levels	9
Heating technology	Induction cooking zones

Service and interfaces

Service and interfaces

Warranty	2 years
Interface	Bluetooth

• Warming function
• Automatic pan detection
• Bridging function
• OptiLink
• Heating function
• Powerplus
• Safety package
• Pan detection
• Pause button
• Automatic warm-up function
• Cleaning lock
• Melt function
• Simmer function
• Childproof look

Documents

Installation guide

3D data (.3ds /.dwg / .dxf / .obj / .skp / .stp)

Operating instructions

Brochure

Product image (high resolution)

Product data sheet

Technical data

Dimensions

Dimensions

Cut-out height	8.5 mm
Cut-out radius	5 mm
Appliance height	53.3 mm
Appliance width	897 mm
Appliance depth	501 mm
Appliance corner radius	2 mm
Support size width	886 mm
Max. support size width	886 mm
Support size depth	490 mm
Max. support size depth	490 mm
Installation height when flush-fitted	53.3 mm
Installation height when surface-mounted	49.3 mm
Cut-out width when flush-mounted	903 mm
Cut-out width when surface-mounted	886 mm
Max. cut-out width when surface-mounted	886 mm
Cut-out depth when flush-mounted	507 mm
Cut-out depth when surface-mounted	490 mm
Max. cut-out depth when surface-mounted	490 mm
Empty weight	18.5 kg
Cooking zone 1 position	front left
Cooking zone 1 dimensions	18×20 cm
Cooking zone 2 position	rear left
Cooking zone 2 dimensions	18×20 cm
Cooking zone 3 position	central
Cooking zone 3 dimensions	28 cm
Cooking zone 4 position	rear right
Cooking zone 4 dimensions	18×20 cm
Cooking zone 5 position	front right
Cooking zone 5 dimensions	18×20 cm

Energy

Energy

Consumption when off	0 W
Cooking zone 1 max. power	3700 W
Cooking zone 2 max. power	3700 W
Cooking zone 3 max. power	3700 W
Cooking zone 4 max. power	3700 W
Cooking zone 5 max. power	3700 W
Type of connection (1)	220-240 V~
Type of connection (2)	380-415 V 2N~
Frequency (1)	50-60 Hz
Frequency (2)	50-60 Hz
Connected loads (1)	11.1 kW
Connected loads (2)	11.1 kW
Fuse protection (1)	48 A
Fuse protection (2)	16 A
Plug type	Cable
Cooking zone 1 energy consumption	185.5 Wh/kg
Cooking zone 2 energy consumption	187.8 Wh/kg
Cooking zone 3 energy consumption	184.5 Wh/kg
Cooking zone 4 energy consumption	184.1 Wh/kg
Cooking zone 5 energy consumption	192.6 Wh/kg

Product ID: CTV 6090
