- Configuration
- Functions
- Documents
- Technical data
- Accessories
Selected product
Selected product
| Article no. |
2500500005 |
| EAN code |
7630029454343 |
| Type |
COC6T-25005 |
| Product category |

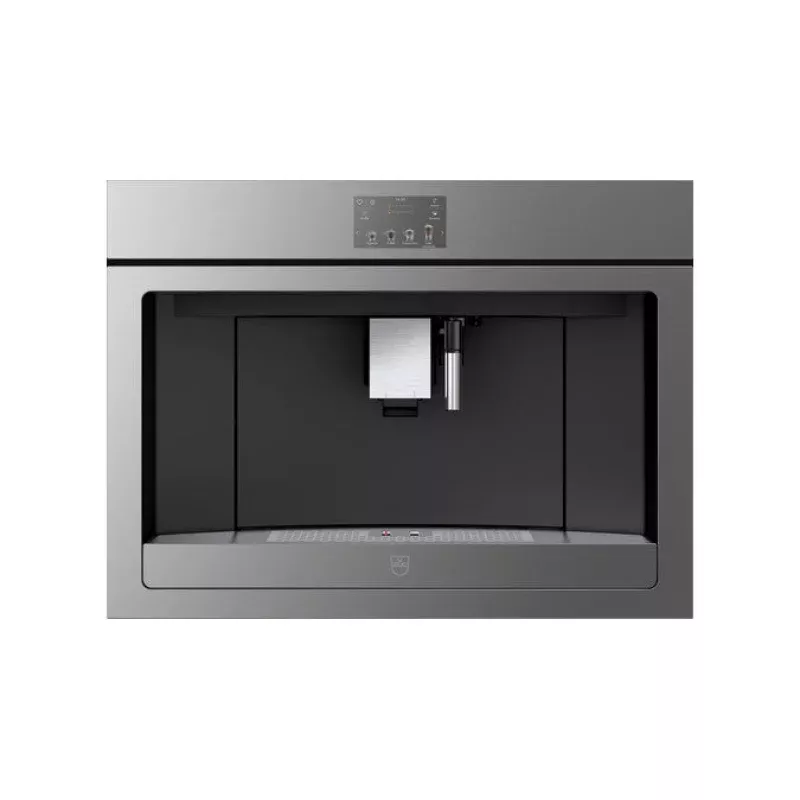

Coffee-Centre |
| Standard width |
60 cm |
| Standard height |
45 cm |
| Front design |
Platinum mirror glass |
Display and operation
Display and operation
| User Profile |
6 |
| Display |
Full-colour graphic display, touchscreen |
| Controls |
TouchControl |
| Number of languages in display |
10 |
| Languages in display |
de, fr, it, en, nl, ru, uk, tr, il, zh |
| Lighting |
LED |
| Number of lights |
4 |
CoffeeCenter features
CoffeeCenter features
| Removable hot water steam outlet |
Yes |
| Coffee bean holder capacity |
350 g |
| Milk container capacity |
0.5 l |
| Waste grounds container capacity |
14 |
| Grinder |
Conical grinder |
| Programmable brewing temperature |
Yes |
| Programmable operating time / switch-off time |
Yes |
| Programmable water hardness |
Yes |
| Pump pressure |
15 bar |
| Plate warming shelf |
Yes |
| Telescopic rails soft closing/opening |
Yes |
| Thermal milk container (Auto cappuccino) |
0.5 l with 3 foam settings + cleaning |
| Drip guard |
Yes |
| Water tank |
2.3 l |
| Adjustable grinder setting levels |
13 |
| Height-adjustable dispensing head |
85-140 mm |
| Integrated cleaning programme |
Yes |
| Programmable quantities |
Yes |
| Powder / beans selection button |
Yes |
| EcoStandby |
Yes |
Service and interfaces
Service and interfaces
| Warranty |
2 years |
Also available with/as (*)
Also available with/as (*)
| Front design |
Black mirror glass |
(*) Not all combinations are available. Ask your retailer for advice.
- Integrated cleaning programme
- 2 cups
- Espresso
- Coffee
- Cappuccino
- Latte macchiato
- Caff latte
- Hot water
Other settings
Other settings
| Espresso macchiato |
Yes |
| Flat white |
Yes |
| Americano |
Yes |
| Long |
Yes |
| Doppio |
Yes |
| Ristretto |
Yes |
| Hot milk |
Yes |
| Milk froth |
Yes |
| User-controlled descaling |
Yes |
Documents
Operating instructions
Installation guide
3D data (.3ds /.dwg / .dxf / .obj / .skp / .stp)
Brochure
Product image (high resolution)
Technical data
Dimensions
Dimensions
| Niche height |
450 mm |
| Max. niche height |
450 mm |
| Niche width |
600 mm |
| Max. niche width |
600 mm |
| Niche depth |
550 mm |
| Appliance height |
454 mm |
| Max. appliance height |
454 mm |
| Appliance width |
596 mm |
| Appliance depth |
480 mm |
| Empty weight |
24 kg |
Energy
Energy
| Energy efficiency |
A |
| Consumption when off |
0 W |
| Annual energy consumption |
64 kWh |
| Type of connection (1) |
220-240 V~ |
| Frequency (1) |
50-60 Hz |
| Connected loads (1) |
1.35 kW |
| Fuse protection (1) |
10 A |
| Plug type |
Schuko 16A |
| Plug type B |
AS/NZS 3112 |
| Plug type C |
BS1363/13A |
| Plug type D |
CN CH1-10P |
| Connection cable |
1.5 m |
Product ID: CCV 6045 B
