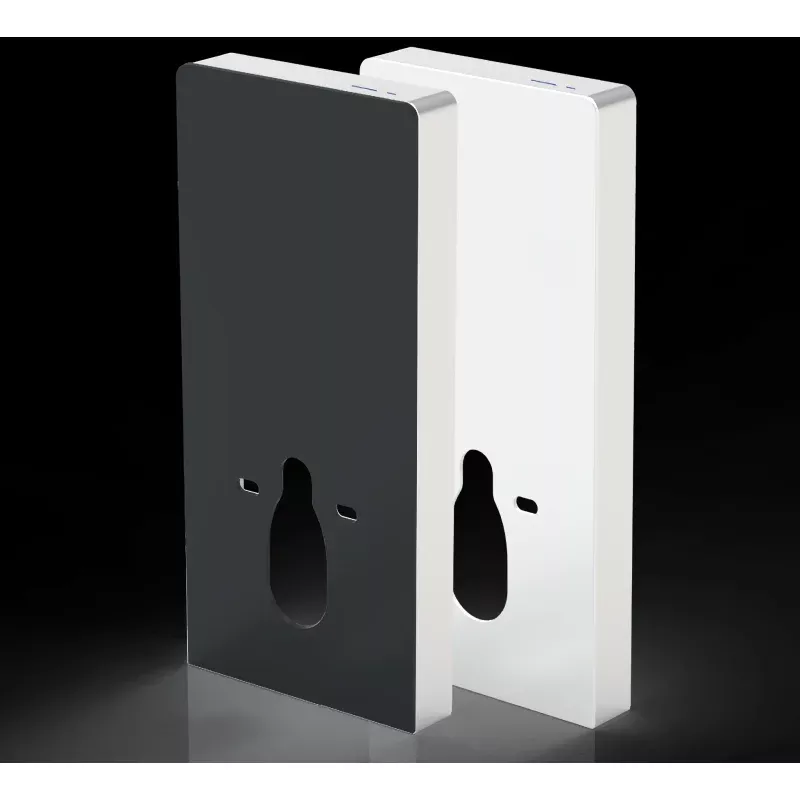

Wall-mounted cistern element for wall-mounted toilet – sensor –
The exposed cistern simplifies the renovation of your toilet or bathroom. You can install this pre-wall cistern quickly and easily without major intervention in the building structure.
The frame is made of high-quality aluminum. The front consists of 8 mm thick safety glass (ESG). The flush volume for full and partial flushing is adjustable. (from 2.5 liters to 7.5 liters)
The rinsing process is carried out easily and conveniently from above using the two sensor-controlled controls. A light tap or swing over it with your hand is enough. If the battery of the sensor unit is empty, there is a manual flush on the side of the cistern.
The surface of the cistern is pore-tight and therefore hygienic and easy to clean.
Product details
| Dimensions HxWxD | 100.3 x 48.3 x 10.8 cm |
|
Material frame |
aluminum |
|
Material front |
8 mm safety glass (ESG) |
|
Color |
Black or white |
|
Installation type |
Surface-mounted |
|
Features |
Full and partial flush |
| Flush quantity | 6 liter flush (adjustable flush volume: approx. 4.5 – 7.5 liters) 3 liter small flush (adjustable flush volume: approx. 2.5 – 3.5 liters) |
|
Water pressure |
0.7 – 7.5 bar |
|
Water temperature |
4 – 35C |
|
Ambient temperature |
3 – 40C |
|
Protection class |
IPX4 |
|
Weight |
Net 19.5 kg, gross 21.5 kg |
| Incl. cistern with dual-volume sensor flush | |
| Incl. sensor control (4x AA batteries are required) | |
| Water connection only inside the cistern (no opening to the outside) | |
