Product features

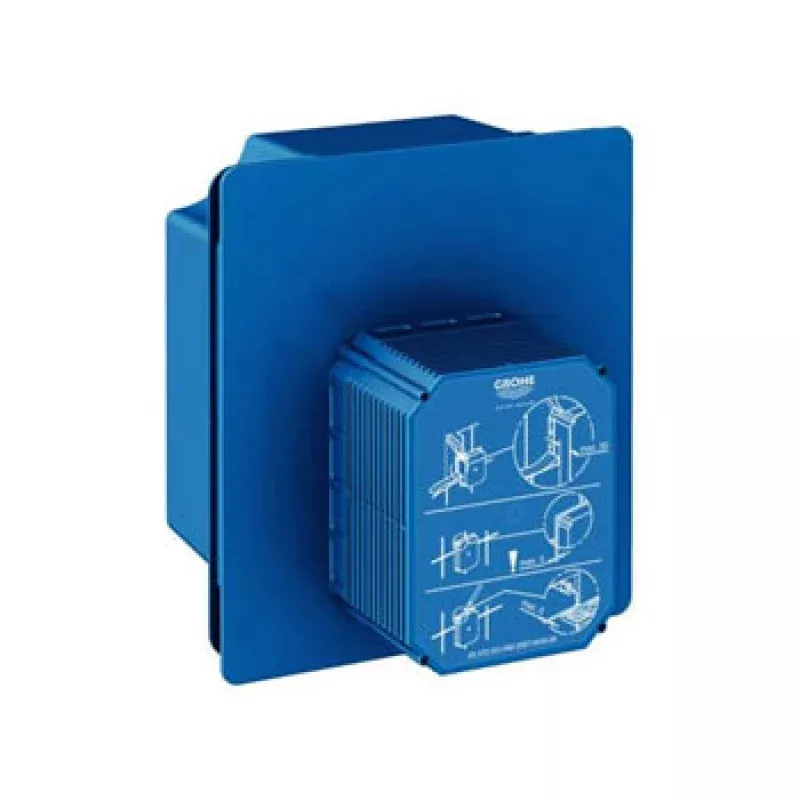

Grohe Rapido UMB Concealed Installation Set for Urinal
- for manual actuation or Tectron infrared electronic 6 V
- water group with stop valve
- flow pressure min 0.5 bar
- operating pressure max 10 bar
- flush aid
- functional unit checked ex factory
- water supply connections 1/2″ outer thread
- installation box with gasket
- fixing points for dry cladding and walling-in
- inspection shaft (can be shortened) including protection during construction phase for sets for final installation
Please note
- built-in box with sealing flange, fixing points for wet and drywall constructions, adjustable maintenance slot with dustcover for 116 x 144 trim sets
SpecificationsItem number:38787000Width (mm):200Height (mm):210Depth (mm):80Type of item:otherShippingPackaging type:ParcelpdfTechnical drawings
