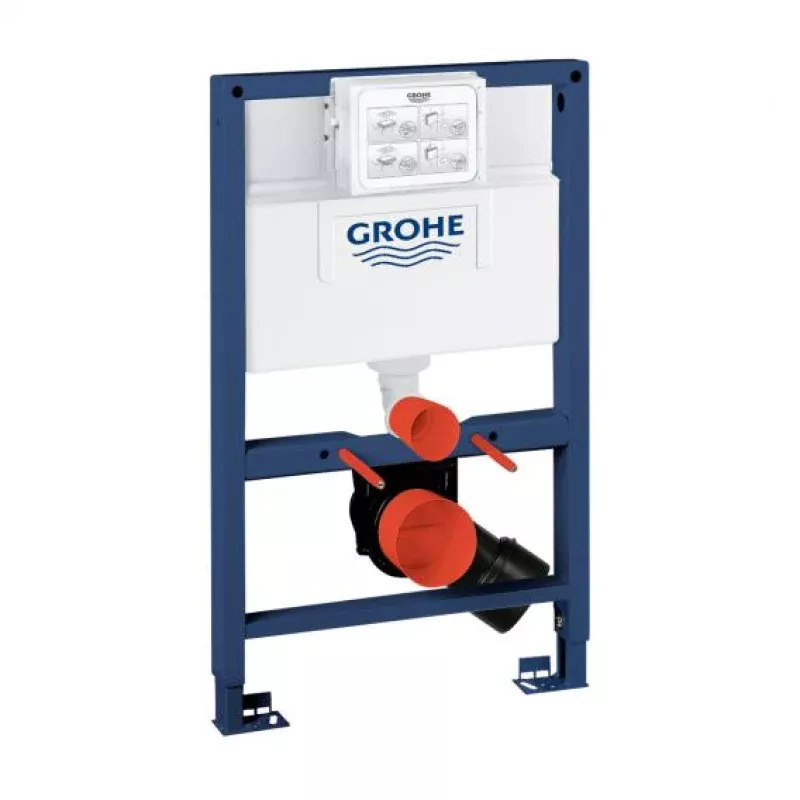

Grohe Rapid SL mounting element for your toilet: stable and elegant
With the Grohe Rapid SL mounting element for your toilet, you can have your toilet hanging elegantly on the wall in no time at all. A cistern is also already integrated. Now simply mount it quickly!
Secure hold – economical flushing
Simply install the mounting element on your pre-wall or directly in the stud wall and let it disappear elegantly behind a dry wall covering. 2 toilet retaining bolts ensure that your toilet is securely fixed. An inlet and outlet fitting is already pre-installed and speeds up the installation process. Thanks to VarioPort and ToolFree, the water connection is quickly made from the rear, right or left – without any tools. The integrated cistern with dual flush and start & stop operation ensures economical water consumption: you choose between 3 or 6 litres flush volume and decide for yourself when the flush stops. Whisper technology also ensures particularly quiet operation.What more could you want – besides Grohe!
Product features
Grohe Rapid SL Mounting Element for Toilet
- for pre-wall installations or studded walls
- for dry-cladding, completely pre-assembled
- for single or series installation
- powder-coated steel frame, self-supporting
- fixed object connection
- 2 toilet fixing bolts with ceramic fittings, distance of fixing bolts 180 or 230 mm
- with quick adjustment and height lock
- quick, simple water connection from the rear, right or left (VarioPort)
- water supply connection 1/2″ with integrated angle valve
- no tools required for the installation of the inspection shaft including protection during construction phase, water connection or hose connection (ToolFree)
- includes DN 80/100 reducer, PP drainage bend DN 80 depth-adjustable
- includes supply and waste set
- includes set of fittings, TV approved
- includes fast, easy and hassle-free installation (GROHE QuickFix)
Integrated Toilet Cistern 6-9 Litres
- operation from the front or above
- connection of flush valve and flush plate by simply attaching the pneumatic hose (EasyConnect)
- with dual flush and start/stop operation
- individually adjustable flush volume from 6 to 9 litres
- default setting: 3 litres for small, 6 litres for large flushing volume
- 3 litre safety flush volume for initial operation of the flush button (SpareFlush)
- fittings group I
- insulated against condensation
- for horizontal mounting of the flush plate
- more comfort through noise reduction (GROHE Whisper)
- save water with maximum comfort (GROHE EcoJoy)
Please note
- please order accessories for pre-wall installation separately. This can be found in Accessories
- please order horizontal flush plate separately. These can be found in Accessories
SpecificationsItem number:38526000Series:SLCountry variants:complies with German standardsMaterial:metal/plasticWidth (cm):50Height (cm):82Depth (cm):16.5Suitable:for wall-mounted toiletsConstruction:drywallActuation:front, upwardsShippingContains:
front-of-wall element, cistern, connection accessories
Packaging type:ParcelpdfProduct data sheetpdfTechnical drawingspdfAssembly instructions
