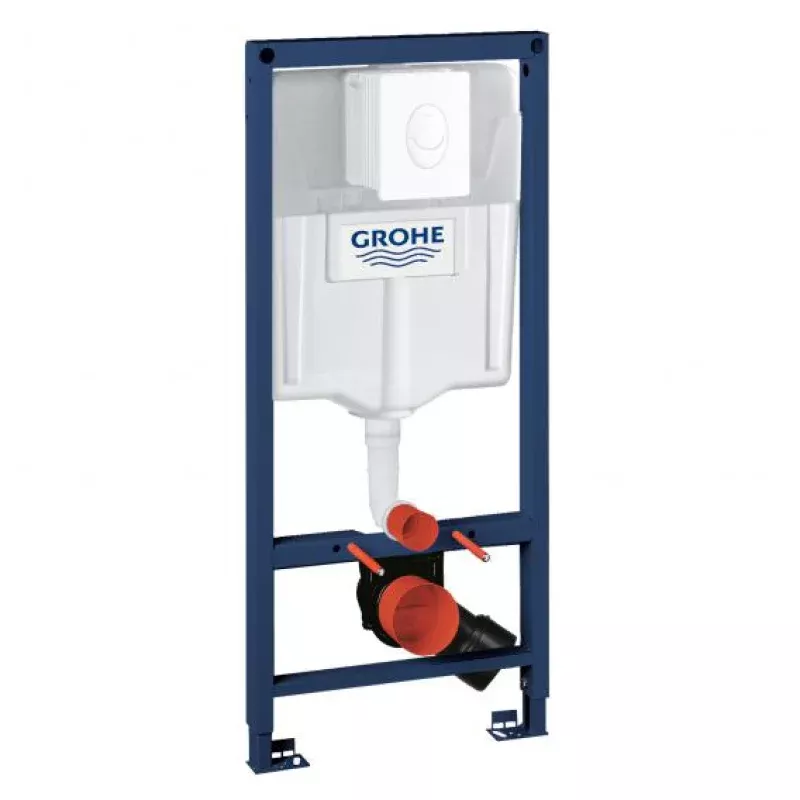

Grohe Rapid SL 2 in 1 set mounting element H

Grohe Rapid SL 2-in-1 set installation element for toilet: with cistern GD 2 and flush plate!

With this 2-in-1 set of the Rapid SL mounting element for your toilet, a cistern and the matching Skate Air flush plate are already included in the scope of delivery and can be conveniently installed as well. Even an inlet and outlet fitting as well as set of fittins are included. Let yourself be impressed by proven functions such as a simplified and variable water connection, which can also be fitted without any additional tools. Saving water is also made easy here: the large flush volume consumes 6 litres, the small one only 3 litres per flush. A safety flush volume of 3 litres is also always available. Put your trust in Grohe!

Product features

Grohe Rapid SL Mounting Element for Toilet

• for pre-wall installations or studded walls
• for dry-cladding, completely pre-assembled
• for single or series installation
• powder-coated steel frame, self-supporting
• fixed object connection
• 2 toilet fixing bolts with ceramic fittings, distance of fixing bolts 180 or 230 mm
• with quick adjustment and height lock
• quick, simple water connection from the rear, right or left (VarioPort)
• water supply connection 1/2″ with integrated angle valve
• no tools required for the installation of the inspection shaft including protection during construction phase, water connection or hose connection (ToolFree)
• includes DN 80/100 reducer, PP drainage bend DN 80 depth-adjustable
• includes supply and waste set
• includes set of fittings, TV approved
• includes fast, easy and hassle-free installation (GROHE QuickFix)
• includes Skate Air flush plate

Integrated GD 2 Toilet Cistern

• connection of flush valve and flush plate by simply attaching the pneumatic hose (EasyConnect)
• with dual flush and start/stop operation
• individually adjustable flush volume from 6-9 litres
• default setting: 3 litres for small, 6 litres for large flushing volume
• 3 litre safety flush volume for initial operation of the flush button (SpareFlush)
• fittings group I
• insulated against condensation
• flush plate can be installed vertically or horizontally
• more comfort through noise reduction (GROHE Whisper)
• save water with maximum comfort (GROHE EcoJoy)

Please note

• please order accessories for pre-wall installation separately. This can be found in Accessories

SpecificationsItem number:38764001Series:Rapid SLCountry variants:complies with German standards Material:metal/plasticWidth (cm):50Height (cm):113Depth (cm):16.5Suitable:for wall-mounted toiletsConstruction:drywallActuation:frontShippingContains:

pre-wall element, cistern, connection accessories, flush plate

Packaging type:ParcelpdfProduct data sheetpdfTechnical drawingspdfAssembly instructions
