Product features

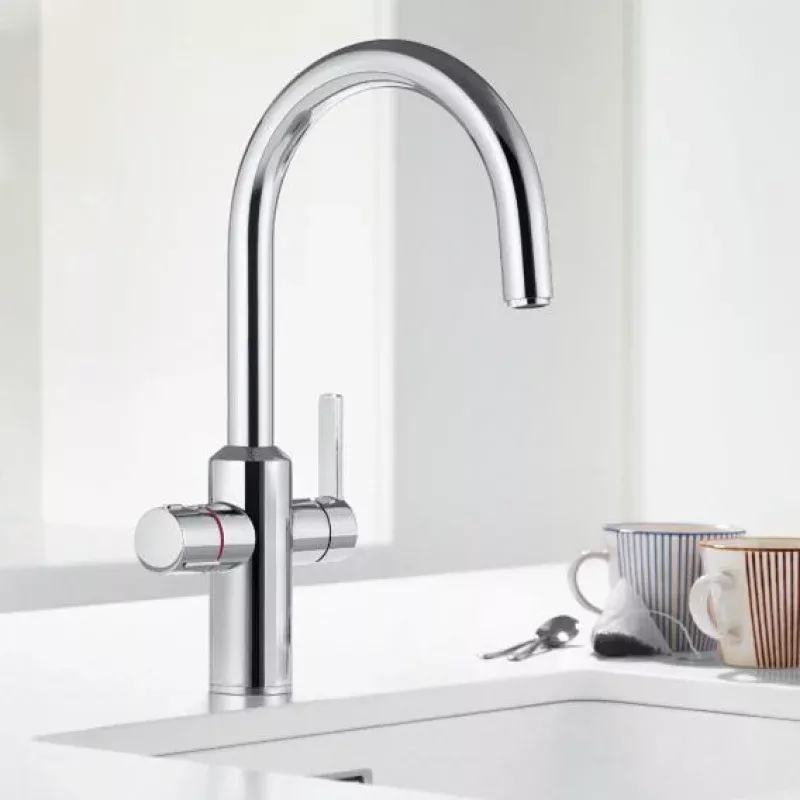

Kitchen Mixer Tap with Filter Function for Boiling Hot Water
- combination of filtered 100C hot water and classic kitchen mixer tap
- 1 spray mode: Pearl spray (soft, air-enriched jet)
- aerator for a well-formed water jet
- filtered, hot water via push-button handle
- no risk of scalding thanks to safety button
- no risk of surface burns thanks to insulated spout
- flow rate of boiling water: 4.7 l/min
- classic tap water via lever
- smooth ceramic cartridge
- flow rate: 11.7 l/min
- swivel spout
- swivel range: 180
- durable chrome surface, easy to clean
- includes stabilising plate to increase the stability of the kitchen mixer tap when installed in stainless steel sinks
- with flexible connection hoses
Boiler
- high-pressure boiler supplies 2.5 litres of boiling water (100C)
- 4 litres total capacity
- operating pressure: 1-5 bar
- tank made of durable, limescale-resistant and corrosion-resistant titanium
- neutral taste and safe for drinking water
- with flexible connection hose and outlet for boiling water
- low standby costs due to efficient insulation
- supply voltage: 230 V
- size:23 H: 34 cm
- no additional installation components necessary
Filter Cartridge with Filter Head
- high-performance filter for an incomparably fresh taste experience
- five-stage filtration process: removes the smallest particles from the water, preserves all important minerals
- stage 1: prefiltration – filters coarse particles such as sand and dirt
- stage 2: activated carbon pre-filter to improve taste – removes chlorine and certain organic substances (including insecticides & pesticides) for a pure and fresh taste
- stage 3: high-performance ion exchanger – removes limescale & mineral substances
- stage 4: activated carbon filtration – the water is filtered and purified again, preserving essential minerals
- stage 5: fine filtration – detects even the smallest residual particles
- replacing the filter cartridge is easy – unscrew the old cartridge and insert the new one
- with non-return valve
- maximum capacity 12 months or approx. 1800 litres at 12 dKH (German carbon hardness)
Flowmeter
- shows how many litres of water can still be cleaned and descaled
- for optimum utilisation of the filter capacity
- acoustic signal when filter change is due
- for connection to the water pipe of the filter
- mounting of the holder is inside the low kitchen cabinet
Please note
- electrical connection required
- electrical fittings comply with German standards
- please order replacement filters separately. These can be found in Accessories
SpecificationsItem number:525224Series:Tampera HotMaterial:brassColour:chromeHeight (mm):382Projection (mm):210Type of fitting:contact-free/electronicType of installation:deck-mountedType of connection:high pressureNo. of tap holes:for 1 tap holePower supply:with plugSpout:can be swivelledSpray modes:1 jetHandle postion:left & rightShippingContains:
fitting, boiler, filter cartridge, filter head, flowmeeter, safety group
Packaging type:ParcelpdfProduct data sheetpdfAssembly instructions
