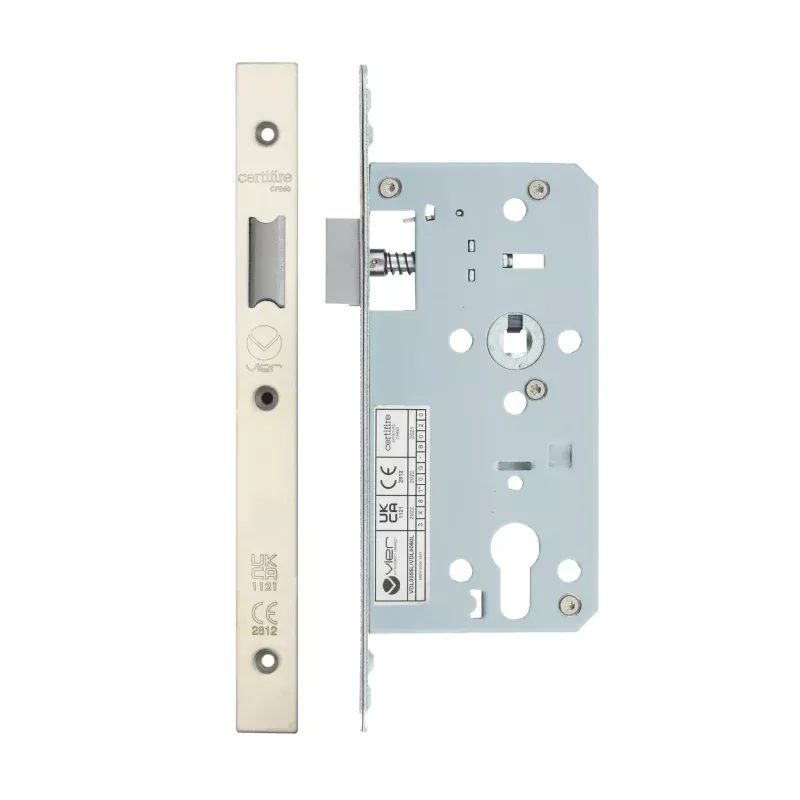

2-Piece DIN Latch Range
The 2-Piece DIN Latch is a high-performance latch solution designed for commercial and high-traffic door applications. Manufactured to BS EN 12209:2003 Grade 3, it delivers durability, smooth operation, and long-term reliability in demanding environments.
Featuring a two-piece SS304 stainless steel forend, precision-engineered internal components, and a quiet operating mechanism, this DIN latch is suitable for use on FD30 and FD60 fire-rated timber doors. Available in 55mm and 60mm backsets with square or radius forend profiles to suit different door preparations.
Key Features
- DIN latch2-piece construction
- BS EN 12209:2003Grade 3
- Backset options: 55mm or 60mm
- 90mm case size
- 72mm centres (c/c)
- SS304 two-piece stainless steel forend
- Square or radius forend profile (22mm)
- Grade 304 stainless steel latchbolt
- Anti-rattle strike for quiet operation
- Grip-tight follower for consistent handle action
Backset Options
- 55mm
- 60mm
Case Size
- 90mm
Centres
- 72mm
Forend Profile
- Square22mm
- Radius22mm
Finish
- PVD Gold
- PVD Satin Black
- PVD Satin Brass
- PVD Satin Bronze
- Polished Stainless
- Powder Coat Black
- Powder Coat White
- Satin Stainless
Standards & Certification
- BS EN 12209Grade 3
- CE MarkedCE2812
- UKCA MarkedUKCA1121
- CF850 Tested
- Fire Rated: FD30 / FD60 (Timber Doors)
Specifications
- Product Type: DIN Latch
- Construction: Grade 304 Stainless Steel
- Application: Commercial & fire-rated doors
Packaging Information
- Pack Quantity: 1 latch per box
